| Tên thương hiệu: | HX Fiber |
| Model Number: | HX-GW1 |
| MOQ: | 1 km |
| giá bán: | negotiable |
| Chi tiết bao bì: | Trục gỗ + Hộp các tông xuất khẩu |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
PRODUCT PARAMETERS
|
|
|
|
Product name
|

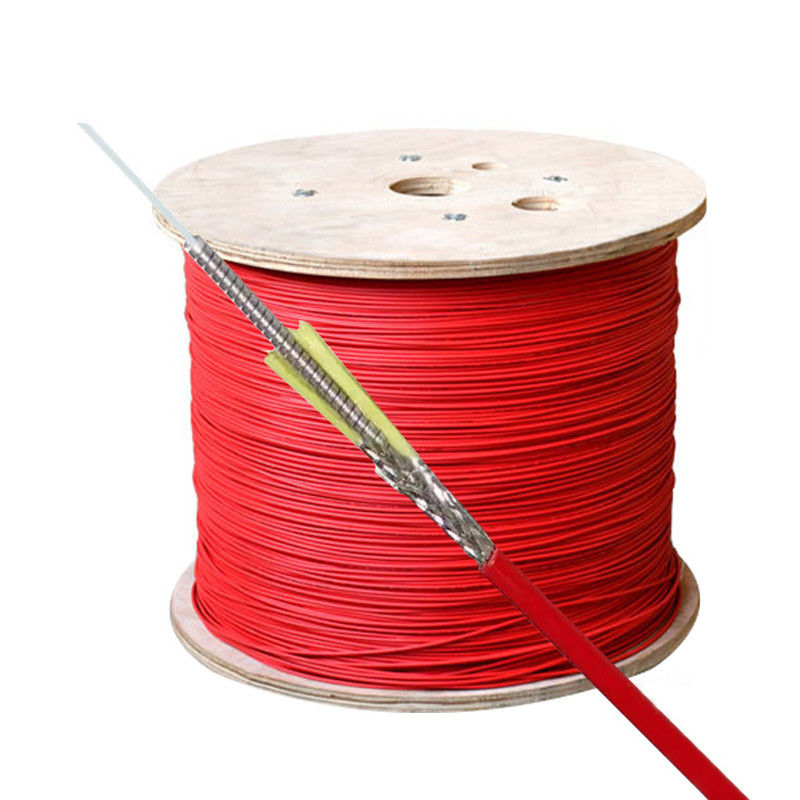

Temperature sensing fiber optic cable
|
|
|

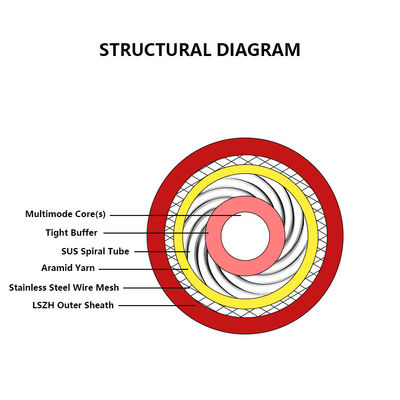

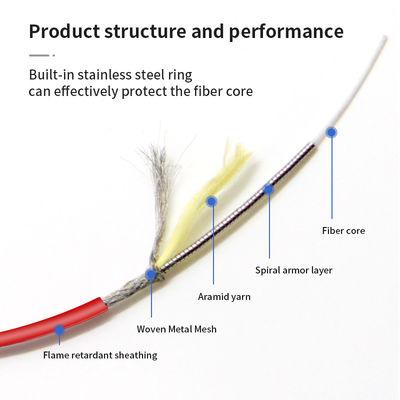

Steel wire
|
Stainless steel spiral tube
|
|
|
Reinforced parts
|
Aramid yarn/stainless steel woven mesh
|
|
|
Diameter
|
3.0mm
|
|
|
Outer sheath
|
LSZH/Flame retardant PVC
|
|
|
Fiber optic
|
Multimode 62.5/125
|
|
|
Minimum bending radius
|
Dynamic 60mm/Static 30mm
|
|
|
General attenuation
|
≤ 3.0dB/km (850nm), ≤ 1.0dB/km (1300nm)
|
|
|
Allowable stretching
|
Long-term 200/Short-term 400 (N)
|
|
|
Allowable flattening force
|
Long-term 200/Short-term 400 (N/10cm)
|
|
|
Applicable temperature
|
Long-term -40 ℃ to 80 ℃/Short-term 2H120 ℃
|
|
|
Note: The above data is for reference only, please refer to the actual product parameters.
|
|
|
|
PRODUCT CHARACTERISTICS
|
|
|
|
①Fully distributed measurement
|
|
|
|
②Long measurement distance
|
|
|
|
③Thirty year maintenance free fiber optic cable
|
|
|
|
④Easy integration and installation
|
|
|
|
⑤Can withstand harsh environments
|
|
|
|
⑥Wide temperature measurement range
|
|
|
|
|
