Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable

Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable

Brand Name: HXCOWO
Model Number: HX-DL2
MOQ: 1000 meters
giá bán: Negotiable
Packaging Details: Wooden shaft+Export cardboard box
Detail Information
Place of Origin:
Guangdong, China
Chứng nhận:
RoHS
Loại:
Cáp quang điện
Số dây dẫn:
≥ 10
Tên sản phẩm:
Cáp sợi OPGW
Ứng dụng:
viễn thông
Chiều dài:
Chiều dài tùy chỉnh
Loại sợi:
G652D/G657A1/G657A2
Gói:
Trống gỗ
Số lượng sợi:
2-288 lõi
Từ khóa:
Tốc độ cao
Nhiệt độ hoạt động:
40~+70
Dịch vụ:
OEM ODM Chấp nhận
Cảng:
Shenzhen
Supply Ability:
1500000 Piece/Pieces per Month
High Light:

Overhead Ground OPGW HXCOWO

,

OPGW Power Fiber Optic Cable

,

HXCOWO Power Fiber Optic Cable

Product Description

HXCOWO Overhead Ground OPGW 12 16 24 32 36 48 Core Power Fiber Optic Cable

TECHNICAL PARAMETERS



Cross-Sectional Area
(mm²)
Rated Breaking Force
(kn)
Fiber Cable Diameter
(mm)
Fiber Cable Weight
(kg/km)
40
54
8.7
313
50
61.4
9.6
348
60
62.7
10.8
391
70
80.8
11.4
478
80
84.6
12
538
90
57.3
12.6
587
PRODUCT FEATURES



①Using advanced stainless steel pipe production technology, the pipe is filled with water-blocking compounds



②The short-circuit current causes little mutual interference between the power grid and the communication network



③The remaining length of the optical fiber and the cable core twisting pitch ensure that the optical cable is not stressed when operating at maximum tension



④Compact structure, high tensile strength



⑤The specifications are similar to commonly used ground wires, and the installation is very convenient and can directly replace the original ground wires



PRODUCT DESCRIPTION
Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable 0

POWER FIBER OPTIC CABLE OPGW

High-speed and stable transmission
OPGW model cross-section optional: 30/40/50/60/70/80/90/100

Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable 1

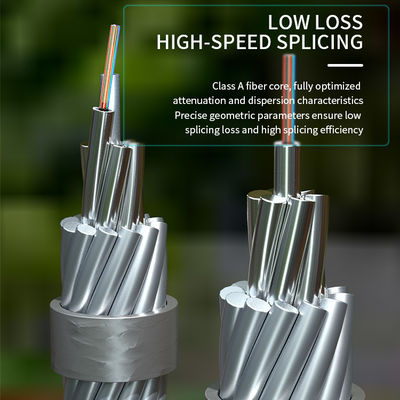

LOW LOSS, HIGH-SPEED SPLICING
Class A fiber core, fully optimized attenuation and dispersion characteristics
Precise geometric parameters ensure low splicing loss and high splicing efficiency
Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable 2

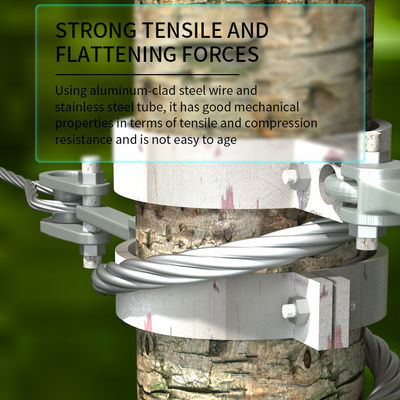

STRONG TENSILE AND FLATTENING FORCES
Using aluminum-clad steel wire and stainless steel tube, it has good mechanical properties in terms of tensile and compression resistance and is not easy to age
Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable 3

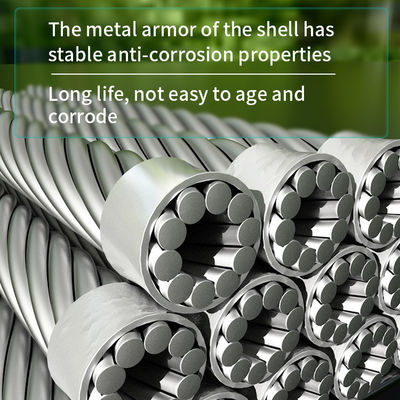

The metal armor of the shell has stable anti-corrosion properties
Long life, not easy to age and corrode
Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable 4

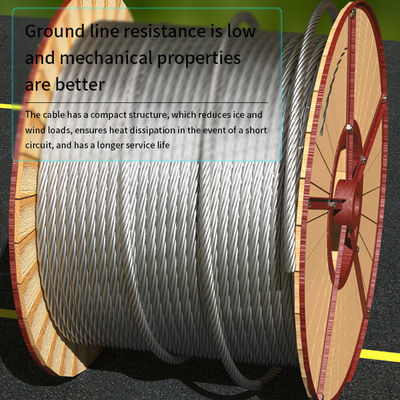

GROUND LINE RESISTANCE IS LOW AND MECHANICAL PROPERTIES ARE BETTER

The cable has a compact structure, which reduces ice and wind loads, ensures heat dissipation in the event of a short circuit, and has a longer service life
Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable 5

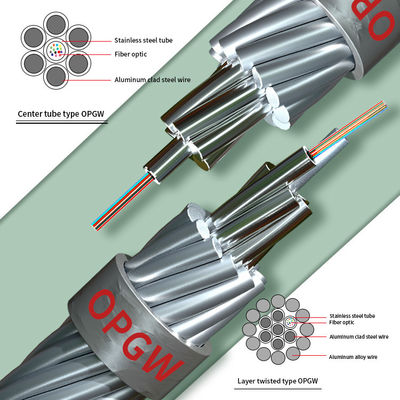

OPGW STRUCTURE DIAGRAM
Stainless steel tube
Fiber optic
Aluminum clad steel wire

Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable 6
PRODUCT DESIGN
Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable 7
Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”
Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable 8
COMPANY PROFILE

Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable 9
Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !
SERVICE & PRODUCTION CAPACITY
Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable 10
FOREIGN EXHIBITIONS
Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable 11
COOPERATIVE BRAND & CERTIFICATION
Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable 12
PAYMENT & TRANSPORTATION METHOD
Overhead Ground OPGW HXCOWO 12 16 24 32 36 48 Core Power Fiber Optic Cable 13
FAQ
1. Are you the real manufacturer?
Yes.  We are the real manufacturer  with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
