Brand Name: | HXCOWO |
Model Number: | HX-TX1 |
MOQ: | 50 pieces |
giá bán: | Negotiable |
Packaging Details: | OPP bag+Export cardboard box |
PRODUCT PARAMETERS
|
|
|

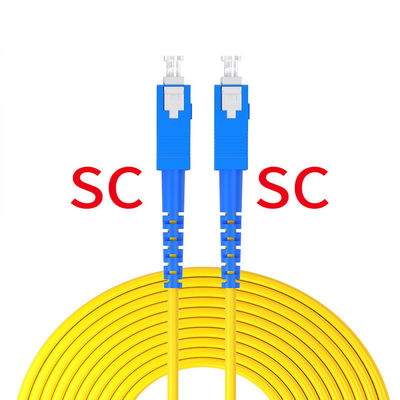

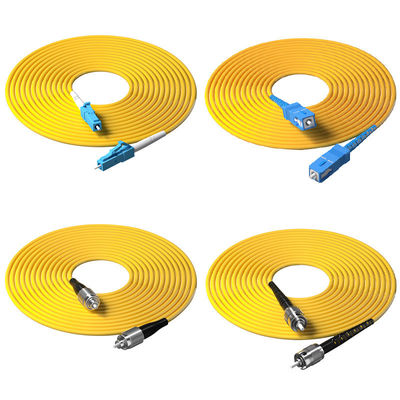

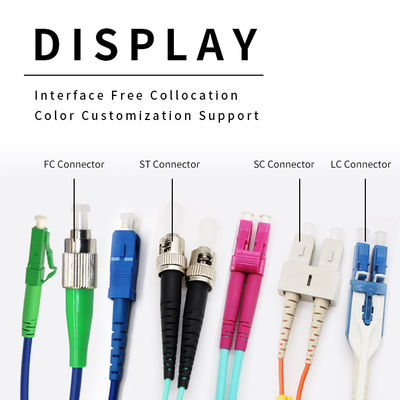

Connector model
|
SC/FC/LC/ST
|
|
Storage temperature
|
-10 ° C+40 ° C
|
|
Fiber optic cable structure
|
Single core/Double core/Bundle shape/Flat strip
|
|
Bending radius
|
15×H (H fiber optic cable diameter)
|
|
Fiber optic cable diameter
|
0.9/2.0/3.0/6.5mm in diameter
|
|
Working wavelength
|
single mode 1310-1550nm/multimode 850nm
|
|
Fiber optic cable material
|
PVC/LSZH
|
|
Insertion loss
|
≤ 0.35dB
|
|
Product length
|
Customizable
|
|
Return loss
|
Single mode UPC ≥ 50dB, APC ≥ 60dB
|
|
Ferrule end face structure
|
UPC/APC
|
|
Interchangeability
|
≤ 0.2dB
|
|
Tensile strength
|
>70N
|
|
Number of plugging and unplugging
|
>1000 times
|
|
Fiber type
|
G652D/G657A1/G657A2/0M1/0M2/0M3/0M4
|
|
Working temperature
|
-25 ℃+70 ℃
|
|

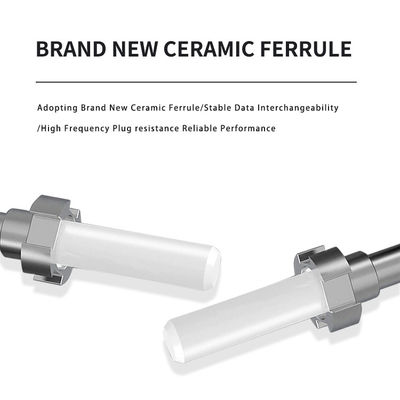

Ferrule
|
Ceramic ferrule
|
